OUR

TECHNOLOGIES

ZANON SOLID SKILLS AND EXPERIENCE IS INTERNATIONALLY RECOGNIZED BY OUR CLIENTS.

MAIN SKILL
MAIN MATERIALS
High Alloy Steel (SS, Duplex and Superduplex), Niobium and Tantalum, Nickel and Nikel Alloys (Inconel, Incoloy, Monel), Titanium, Zirconium.
EB WELDING
EB WELDING

30 YEARS EXPERIENCE IN EB WELDING

2 EB welding plant, S.S. Chamber. Size 3.4 x 2 x 2m
Oil-free pumping group with cryogenic pump
(3×10-5 mbar 35 minutes)
Nitrogen venting, RGA, 150 kV beam 30KW

CLEAN ROOMS

INTEGRATION IN ISO 4 & 7 CLEAN ROOMS

For clean assembly, final surface treatments, final assembly for the RF cold test.
High Pressure Rinsing & Ultrapure Water Rinsing.

Total surface of 450 sq m



EB WELDING
TIG WELDING
Tig welding equipment

Tig orbital welding machines
High thickness narrow gap tig welding machines/robots

CHEMICAL TREATMENT

Chemical treatment with UPW plant (18MΏcm)

With specialised personnel.

EB WELDING

ultra high vacuum

Fully equipped with the most modern instrumentation

Solid know-how, qualified personnel and experience in Ultra high Vacuum technology.

VACUUM THERMAL TREATMENTS

Vacuum oven up to 1200°C annealing

Molybdenum Hot-chamber 0.6×0.6×1.5m, cryogenic pumps, RGA.

Inert gas oven for final treatment (120°C, 1×10-5 mbar)

Nitrogen doping

EB WELDING

3D METROLOGY

Fully equipped with the most modern 3D measuring equipment, Know-how on 3D measuring and Reverse Engineering.

Our equipment:
CMM by ZEISS.
3 Laser Trackers Faro.
2 Faro Arms.
Laser scanning.
T-probe & T-scan.
Photogrammetry.
Spatial Analyzer software.

RF & FINAL TUNING

Dedicated equipment and qualified personnel for sub-component

RF control and cavity final tuning.

EB WELDING

HIGH PRECISION MACHINING

Fully equipped with:

CNC MILLING & TURNING machines for small and medium size parts.

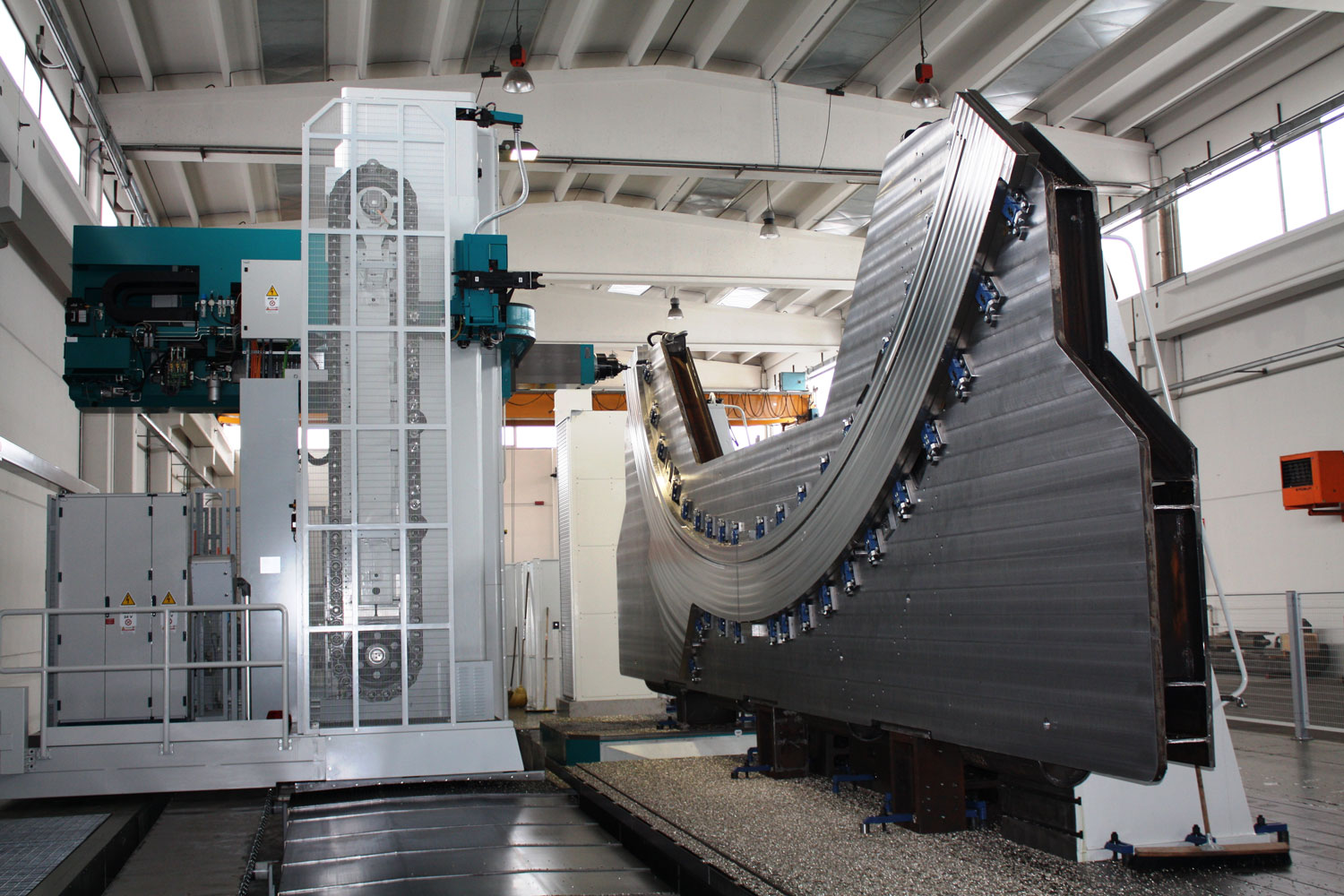

Large CNC 5 Axes MILLING & TURNING MACHINES for large size items.

Temperature controlled areas
